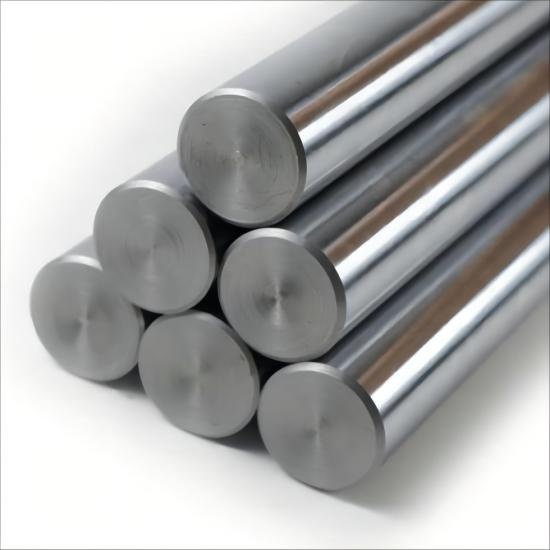

Chrome plate rod

Chrome Plated Rods are widely used in mechanical industry. Chrome plated piston rods from XUD STEEL are able to withstand the harshest of applications.
The chrome layer on the chrome bar is formed by electroplating, which has the characteristics of high hardness, high heat resistance, good wear resistance, chemical stability and so on.
Our expansive inventory for raw materials allows us to produce your required items with a quick delivery. We are pride to be able to make sure you can get more alternatives when you need them.

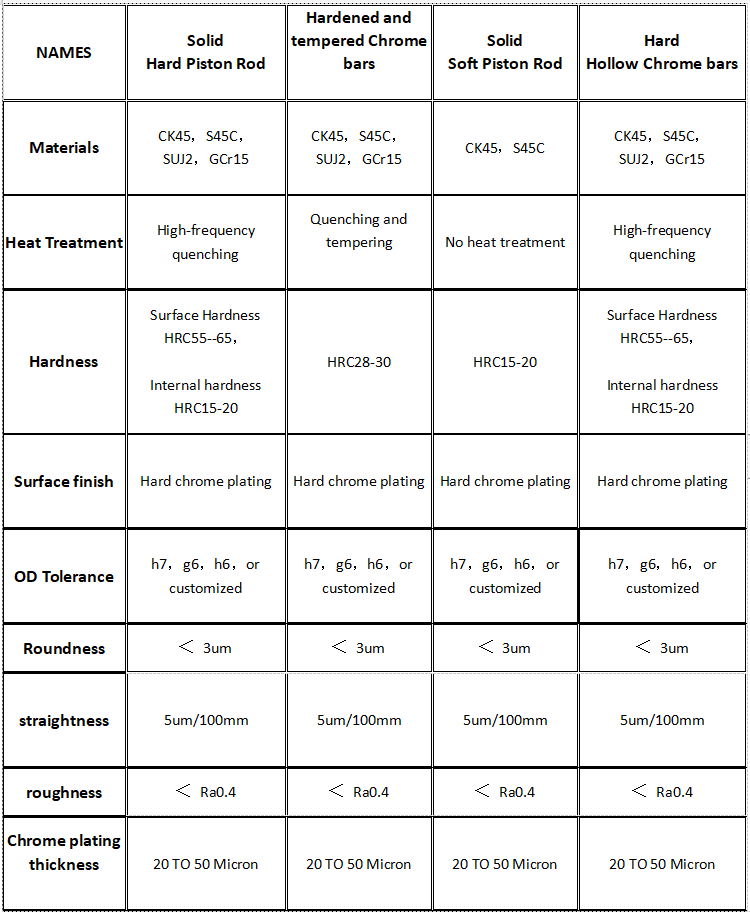

Material: CK45

Material: 40Cr

Material: GCr15

Material: 42CrMo

Material: 35CrMo

Supply condition:Hard Chrome plated
Chrome thickness:20 TO 50 Micron
Surface roughness:Ra ≤0.4 Micron
Out diameter tolerance:ISO f7
Ovality:Half of the tolerance ISO f7

Outside diameter from 10 to 700 mm
max length 6 meters

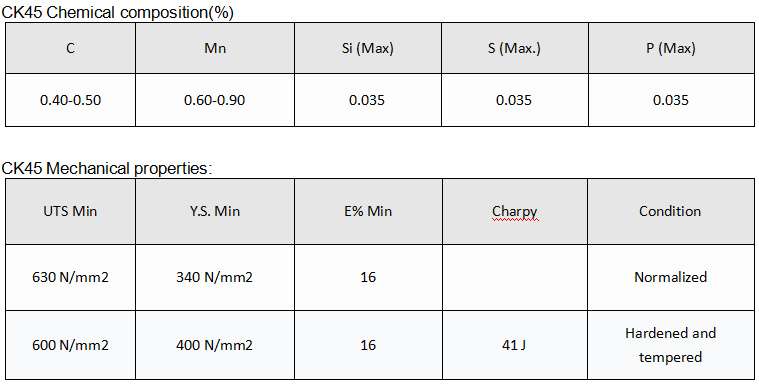

CK45 Chemical composition(%)

C	Mn	Si (Max)	S (Max.)	P (Max)
0.40-0.50	0.60-0.90	0.035	0.035	0.035

CK45 Mechanical properties:

Other Names:

CK45 Chrome Plated Rods                                             40Cr Chrome Plated Rods

CK45 Chrome plated piston rods                                 35CrMo Chrome Plated Rods

CK45 Chrome bar                                                      42CrMo Chrome Plated Rods

CK45 Hard Chrome plated bars                                    GCr15 Chrome Plated Rods
